Make Double Skillion Wall

Open FramingPlans App

Make double skillion wall

Change lintel size - step 1

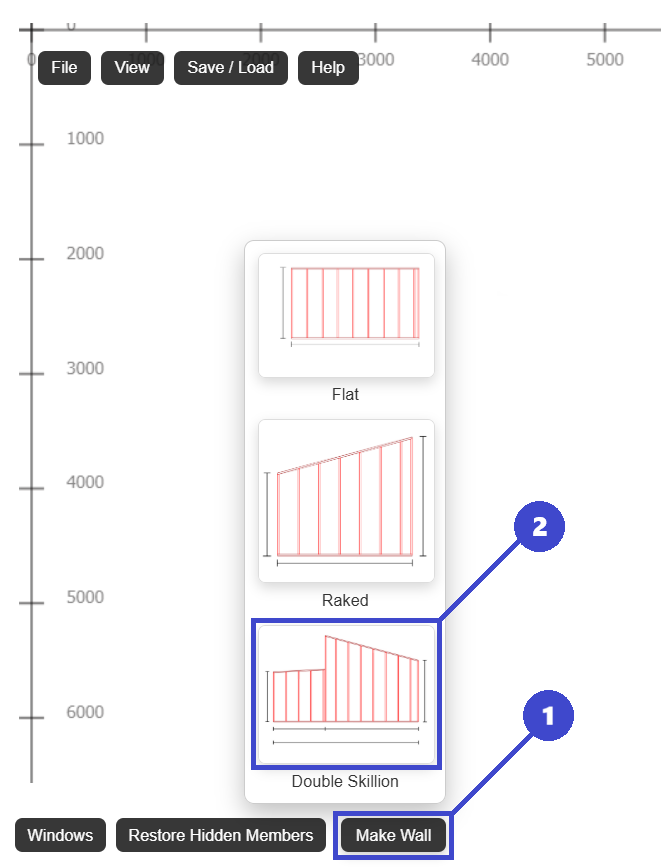

  • 1: Click Make Wall.
  • 2: Click Double Skillion.
Change lintel size - step 2

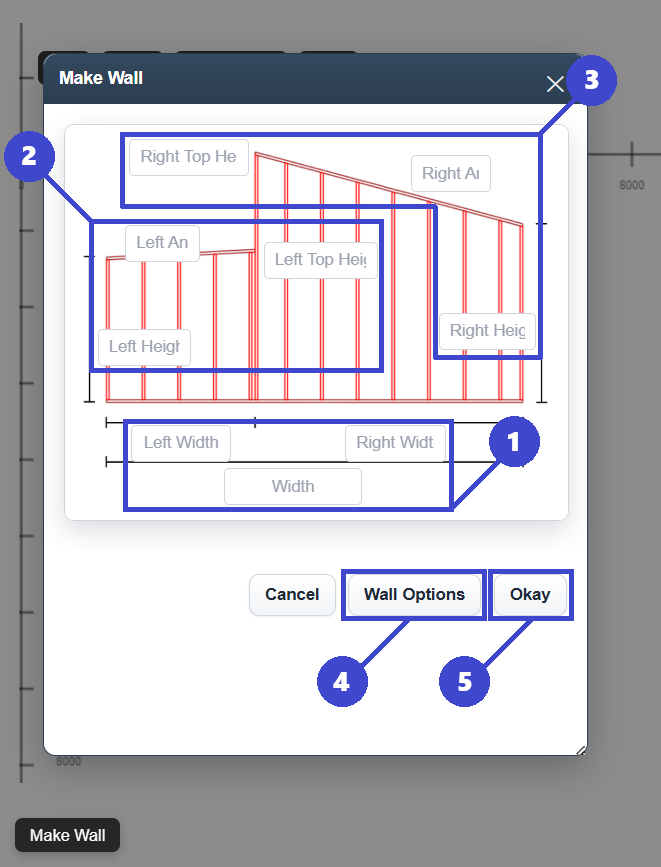

  • 1: Enter 'Width', 'Left Width',and 'Right Width'. Enter two options only, the third is auto-calculated.
  • 2: Enter 'Left Height', 'Left Angle',and 'Left Top Height'. Enter two options only, the third is auto-calculated.
  • 3: Enter 'Right Height', 'Right Angle',and 'Right Top Height'. Enter two options only, the third is auto-calculated.
  • 4: Click 'Wall Options' to change stud width and wall depth.
  • 5: Click 'Okay' to create wall.
Change lintel size - step 3

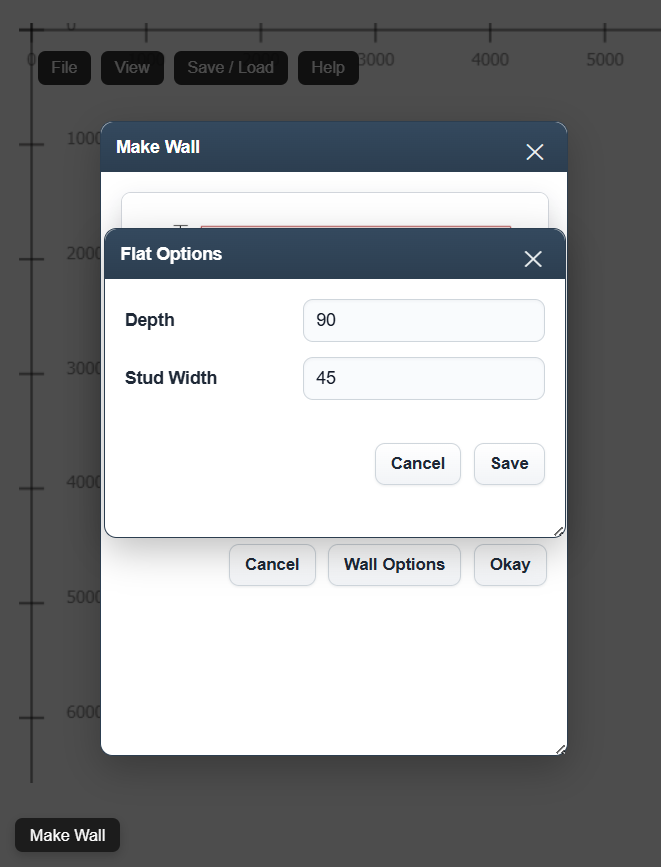

Change stud width and wall depth if required. Accessed by clicking 'Wall Options'
Change lintel size - step 3

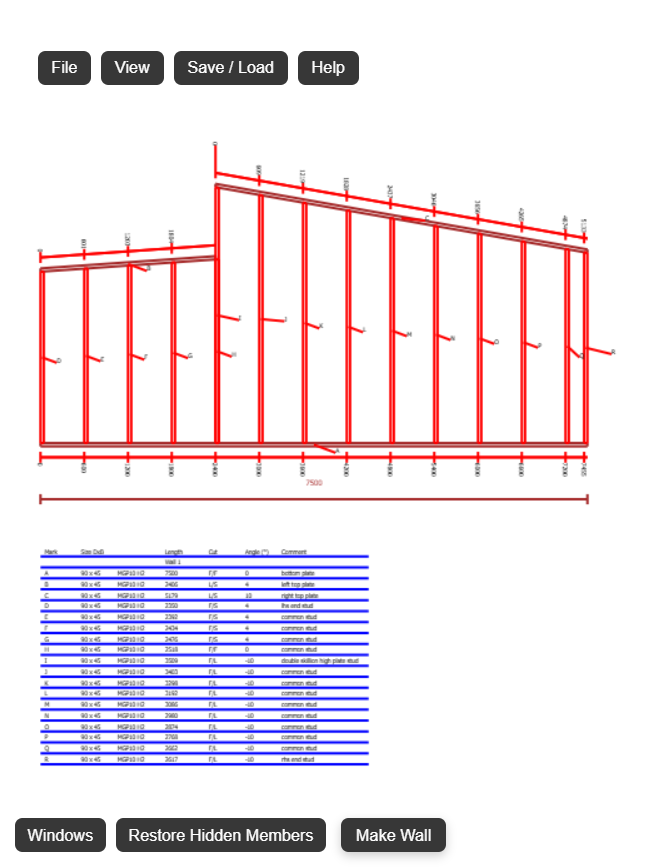

The wall will appear after clicking 'Okay'
